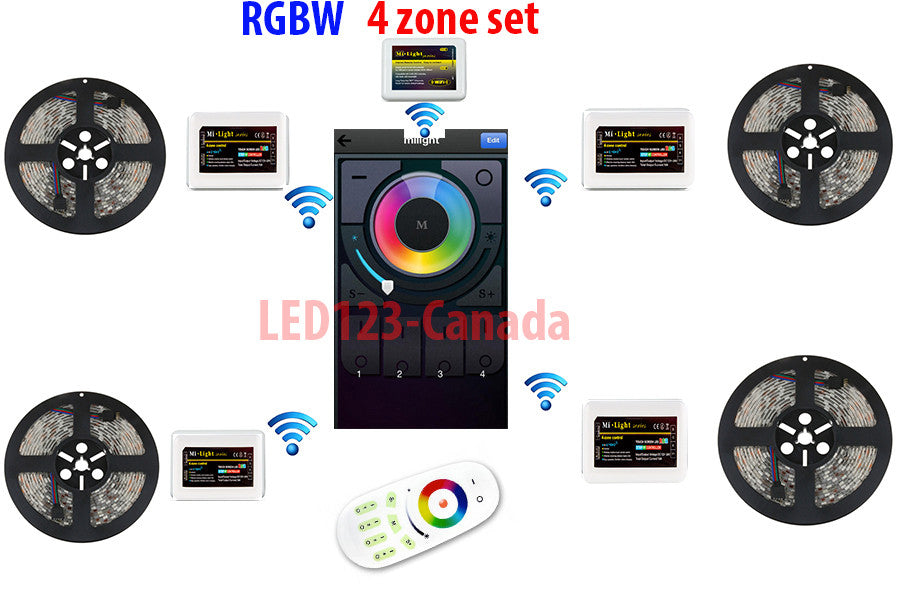

4 zone RGBW wifi controller/ Remote controller for 5050 RGBW LED strip

4 zone RGBW wifi controller/ Remote controller for 5050 RGBW LED strip

$35.00
$35.00
Sale Sold out
Select a set

Control up to 4 zones of RGBW LED strips with your phone app or a remote controller or both Separately

    LED controller:
    Size: 85 x 45 x 23mm
    Working voltage: DC12-24V
    Control way: R G B W Four Channels (Red Green Blue & White)
    Max Load Current per channel: 6A*4=24A
    Power Input Port: DC 5.5*2.1 Female Connector or Direct 2 wire(+ -) Input
    Output Connection:Common anode
    Built-in Programs:Multiple
    Compatibility:4-channel RGBW LED strips
    4 Zone Remote controller:


    HTB1oFD0GVXXXXcdXpXXq6xXFXXXQ





    4 Zone WIFI controller:

    Wifi controller can be connected to any USB port to provide power to the unit.

    A very user friendly app is used to communicate with the wifi controller and LED controllers

    All instructions manuals are included.

    All connectors are included



    RGBW LED strips:

      • LED Type: 5050 SMT LED
      • Voltage Protection Rate: IP20
      • LED Quantity: 300 leds
      • Size: L 500cm (16.4ft) x W 1cm x T 0.25cm
      • View angle:120°
      • Working Input Voltage: 12VDC
      • Working Current: 3Amp
      • Output power:36W/5m
      • Luminous Flux: 20 Lumens/LED
      • Working Temperature:-20° to 50°
      • Drive Mode:Constant Voltage
